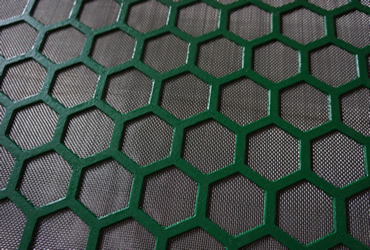

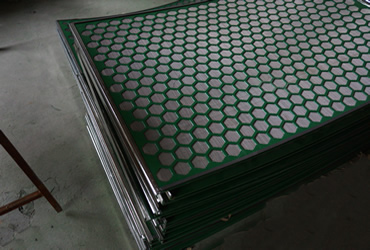

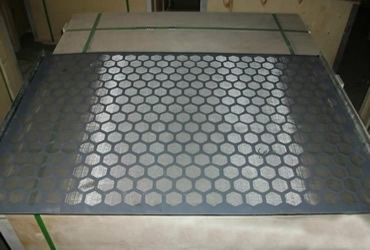

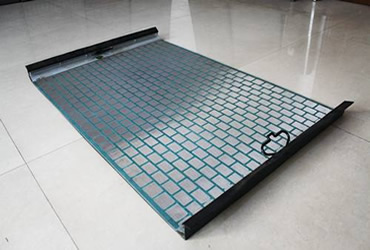

Hook strip flat screens are the series applied most widely at present. These products can be fit for all kinds of shale shakers that use the hook strip flat screen. This screen panel is constructed with two or three stainless steel layers bonded to a steel support plank. Accessory rubber plugs may be inserted to the rips or tears of the screen. By doing this, we can cut down time and the production cost.

Features of Hook Stripe Flat Plate Screen

1. Every wire cloth in the sieving screen has different meshes,and accurate collocationcan make the screen have better effect. In the sieving screen with different meshes,the hole size of support plank is different,so as to get the most effective area on the condition of bearing enough force.

2.The Stainless steel wire cloth combines steel support plank into a single closely,so as to enhance the strength of the whole screen and prolong its life.

3.The wire cloth is divided into independent small surface by the gird of steel support plank,which can prevent excessive expansion of local damage.At the sametime,equipped with a special rubber plug to repair damage,it can save tine and reduce the cost.

Our company has rich production experience and mature technology, we can produce a variety of specifications hook strip flat screen according to the different needs of customers.

Applications:

Use as vibrating screen in the oil industry, Filter the mud and other impurities in oil, Drilling fluids and waste management, Applied in the mud treatment, Used in drilling operations.
